Ultra Block Manifold

October 2018

Fluids accepted: water, glycol solutions
% glycol max: 50%
Working temperature: 5÷60 °C
Max temperature: 90 °C at 3 bar
Working pressure: 0÷6 bar
Max pressure: 10 bar
Burst pressure: > 15 bar at room temperature
Max torque to adjust F2” inlet: 100 N?m
Kv flow coefficient when fully open: 8000 l/h

Monoesa Manifold - DIN Flux

October 2018

Monoesa Manifold c/w transparent push-in connectors
Supply DIN-EN 1264-4 Flow-meter 0-5 l/min
Lockshield valve M30x1.5
Customization upon request

Stainless Steel Manifold - DIN Flux

October 2018

Stainless steel Manifold c/w transparent push-in connectors
Supply DIN-EN 1264-4 Flow-meter 0-5 l/min
Lockshield valve M30x1.5
Customization upon request

COFFEE

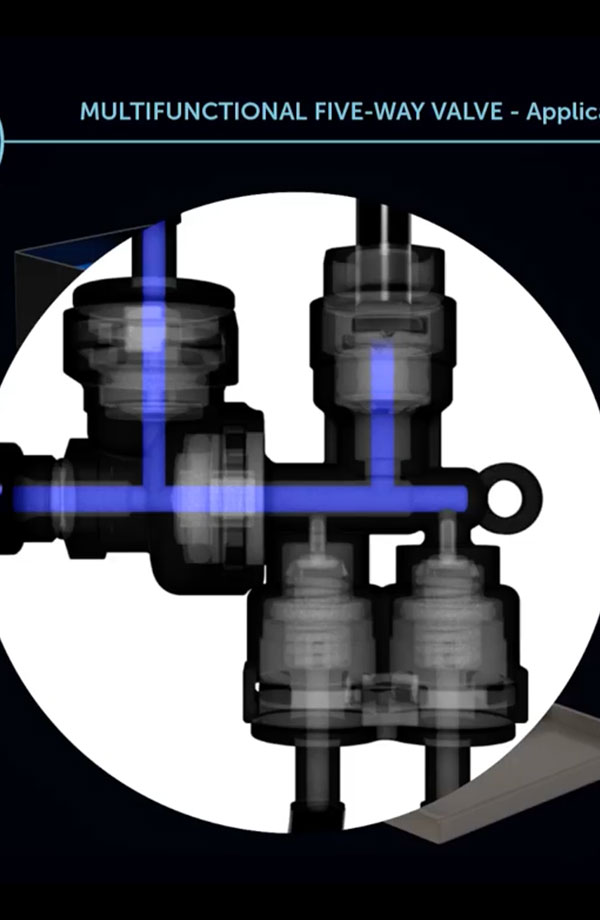

Multi-function valves and push-in connectors for coffee machines.

The multivalves for domestic and semi-professional coffee machines are designed in accordance with the client's plumbing in order to achieve cost savings.

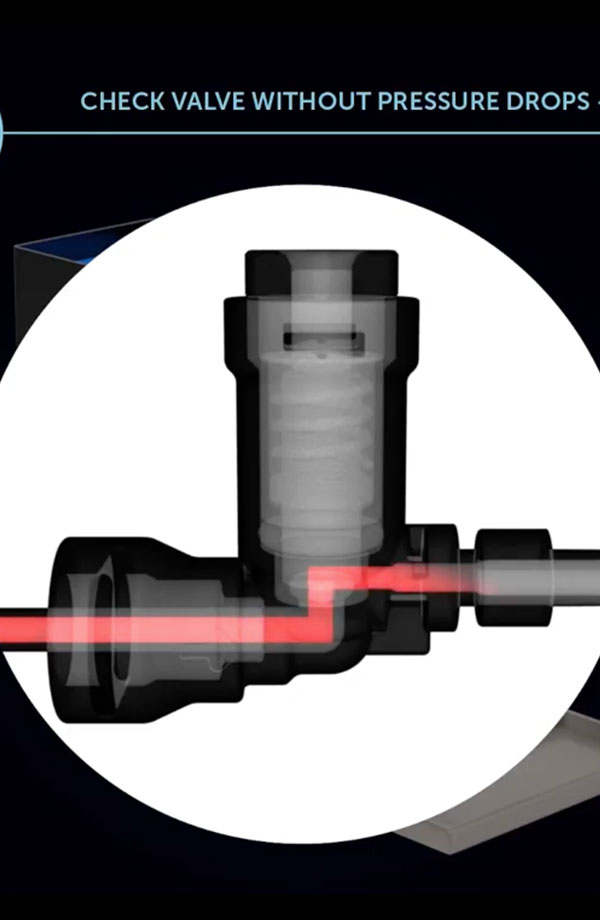

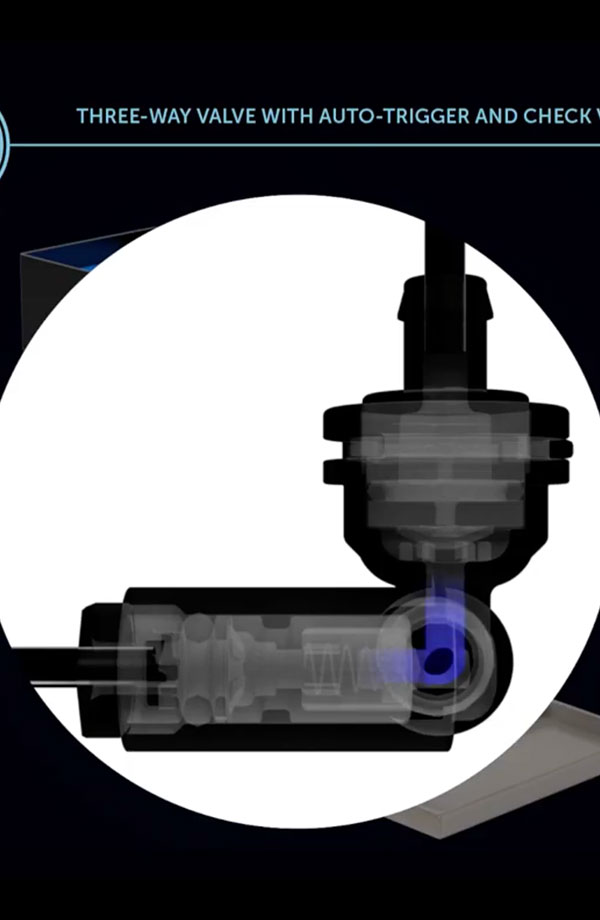

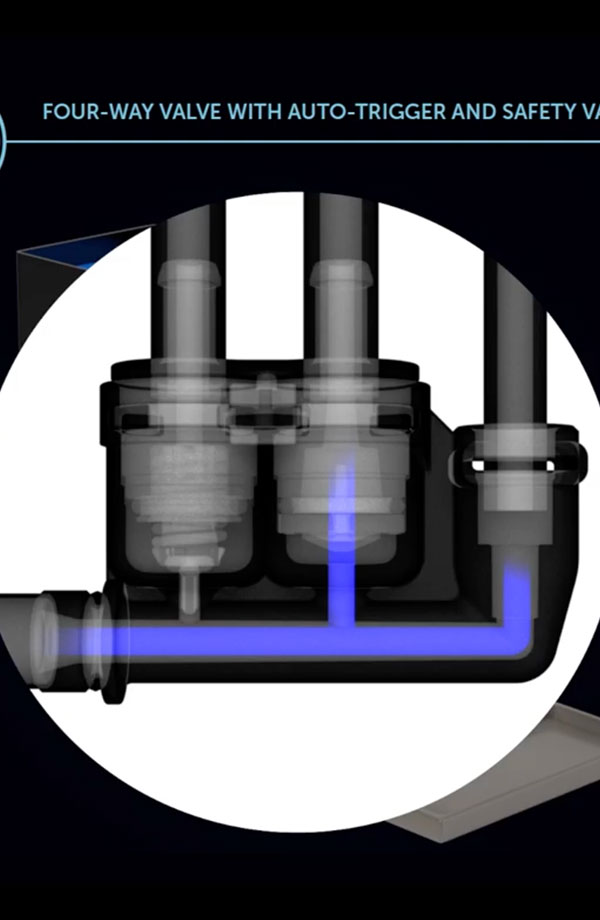

They integrate self-actuating, security, by-pass and check functions.

Our bayonet quick connectors for teflon pipes are designed in different materials according to their field of application, and they can operate at a pressure of up to 20bar and a temperature of 130/140 degrees celsius (steam).

The connections featuring a fork system, while maintaining the same levels of performance, are available at a reduced price.
